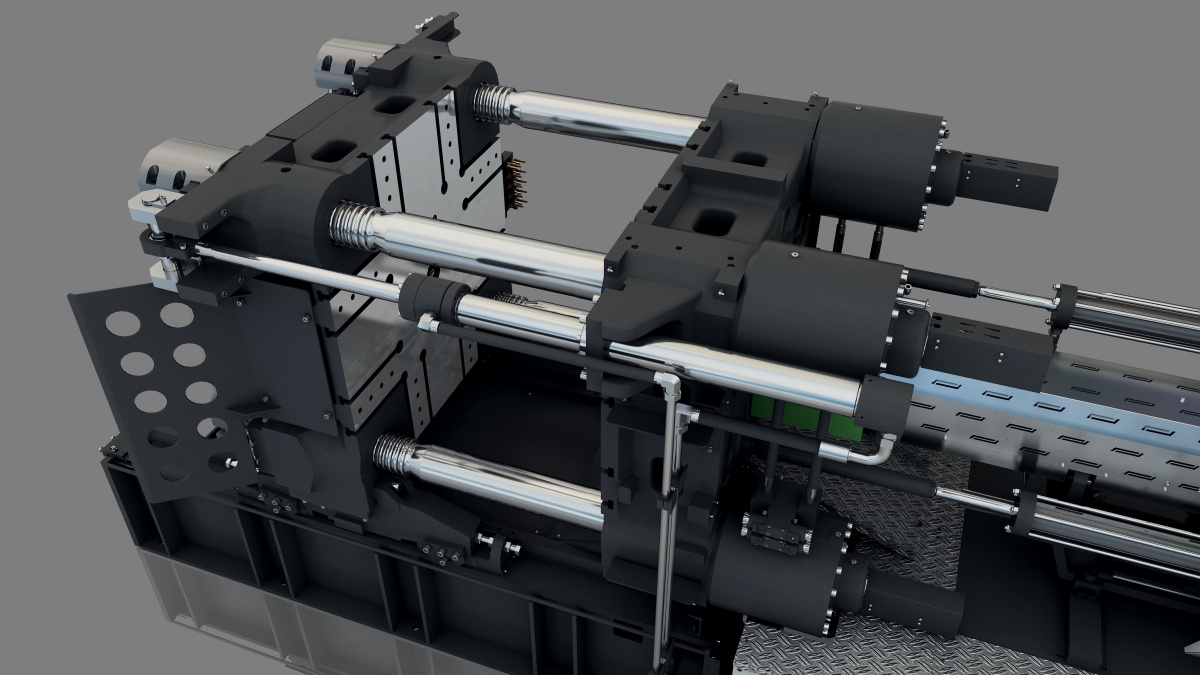

先進的鎖模結構

Advanced two-platen clampingdesign

● 先進的兩板式鎖模機構，結構緊湊，占地空間更小

The compact structure of the two-platen clamping design significantly reduces the floor space occupancy.

抱閘精確，無沖擊

Minimal rebound

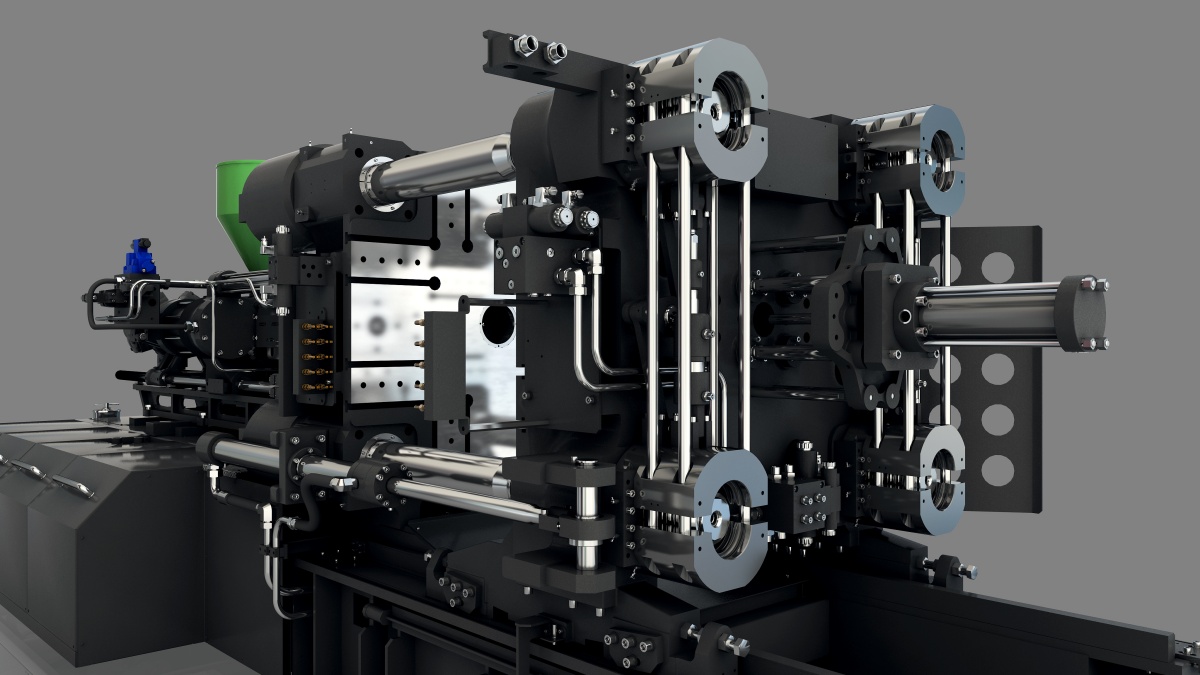

● 同步式拉桿抱閘裝置，抱閘油缸具備緩沖功能，抱閘精確，無沖擊

Synchronous tie bar locking system with buffer feature ensures the nut locking preclsion with minimal rebound.

超長支撐滑腳

Extended moving platen support

● 超長的動模支撐滑腳，受力性強，保證模板在使用承重模具移動的精度，提升模具的使用壽命

Exfended moving platen ensures precise movement though mounted with heavy moulds.The mould life is therefore extended

模塊化設計

Modular design

●模塊化應用，方便維護

Facilitates easy maintenance

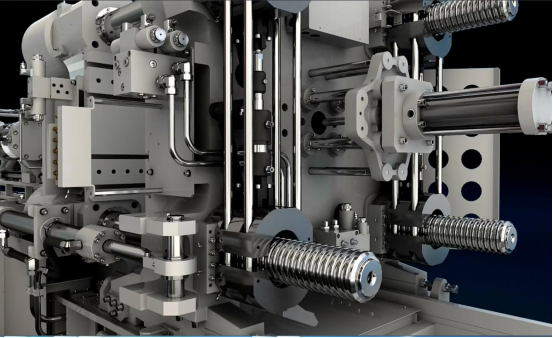

無摩擦拉桿設計

Friction-free design

●拉桿與動模板零摩擦，使用壽命更長，對角式布局的兩個快速油缸大大提升開合模速度

No friction between the tie bar andmoving platen sacuring longer machine life.The two dliagonally placed hydraullic cylinders increase mould opening and closing speed.

模板均勻受力

Even force distribution

●安裝于定模板的四個鎖模油缸，保證模板在鎖模動作時的均勻受力

Four short-stroke clamping cylinders are embedded on the fixed platen attaining even force distribution during clamping.

維護方便

No Toggle design

●無機鉸，僅需維護油缸密封圈

With less mechanical parts compared with toggle machines.hydraulic cylinder seals are the only parts that need maintenance.
